Technical specifications BMW 320si

Motorsport version for the 2006 FIA World Touring Car Championship.



Length: 4,535 mm



Width: 1,845 mm



Height: approx. 1,350 mm



Wheel base: 2,763 mm



Vehicle weight: 1,140 kg (with driver)



Engine type: four-cylinder in-line

Capacity: 1,998 cc



max. output: approx. 275 bhp at approx. 8,400 rpm



max. engine speed: 8,500 rpm (as per regulations)



Cylinder block: aluminium crankcase reinforced with a bedplate



Engine control: BMW Motorsport ECU404



Tank capacity: approx. 45 litres



Fuel: standard fuel, Super Plus unleaded



Chassis/body: unitary construction steel body



Aerodynamic front apron, rear apron, flared front and rear



package: wheel arches made of CRFP/GFRP, rear wings made of aluminium



Front axle: double joint Mc Pherson axle with adjustable anti roll bar



Rear axle: five arms axle with adjustable anti roll bar



Shock absorbers: Sachs with adjustable compression and rebound



Brake system, front: four-piston AP brake callipers, iron brake discs of 332 mm diameter



Brake system, rear: two-piston AP brake callipers, iron brake discs of 280 mm diameter



Wheels: aluminium rims, SA 216 BBS

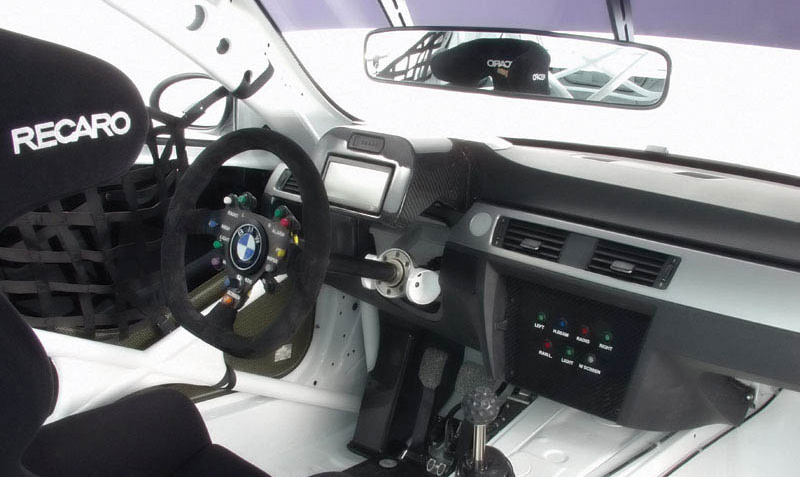

Seat: Recaro ProRacer HANS
